Modular Optical Fiber Panels with Cable Management Bars

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

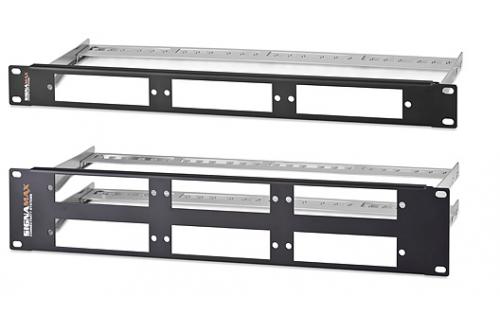

Signamax offers a range of economy, high-density optical fiber patch panels accepting variety of our optical fiber adapter plates. These rack-mount panels are available in 3- and 6-adapter-plate sizes (1 or 2 RMS) and are ideal where space is limited as compared to the standard-density optical fiber panels or enclosures. These high-density panels provide increased termination density due to more compact adapter population and can be supplied unloaded for field configuration or pre-loaded with adapters.

Panels include an integrated mechanism for mounting either a cable management bar for cable routing and strain relief requirements.

KEY FEATURES

Three- and six-position designs (accommodate three or six adapter plates/cassettes)
Fiber termination density:
– 18 to 72 fibers in 1-RMS (three-adapter-plate) design
– 36 to 144 fibers in 2-RMS (six-adapter-plate) design
Two mounting sizes:
– 1 RMS (accommodates three adapter plates/cassettes)
– 2 RMS (accommodates six adapter plates/cassettes)
Easy adapter plate or cassette mounting using plunger locks (push pins)
Integrated mechanism for mounting cable management bar for cable routing and strain relief requirements
Compatible with all Signamax UFE-series adapter plates and FCM-series cassettes
Maximum strength and durability construction (cold-rolled steel, anti-corrosive finish, no thread joints)

SPECIFICATIONS

CONNECTING HARDWARE

Adapter plates: Signamax UFE series
Cassettes: Signamax FCM series

MOUNTING DIMENSIONS

RMF3-B: 19-in rack-mountable, 1.75-in (1-RMU) high, ¾-in deep
RMF6-B: 19-in rack-mountable, 3.50-in (2-RMU) high, ¾-in deep

CONSTRUCTION

Panel housing: 16-gauge CRS, black paint coating

ENVIRONMENTAL CONDITIONS

Storage: -40 °C – +70 °C (-40 °F – +158 °F)
Operation: -10 °C – +60 °C (+14 °F – +140 °F)
RH (operation): max non-condensing 93 %

WARRANTY

5-year limited component warranty

DOWNLOADS

Information will be available soon

ORDERING INFORMATION

Part Number	Description
RMF3B-B	18- to 72-Fiber Rack-Mount Modular Optical Fiber Panel Included 1 Cable Management Bar (CMB-550-M), 1.75"H
RMF6B-B	36- to 144-Fiber Rack-Mount Modular Optical Fiber Panel Included 1 Cable Management Bar (CMB-550-M), 3.50"H
CMB-250-P	Panel-Mount Cable Management Bar, Plastic Body, 2.50″-Deep
CMB-550-M	Panel-Mount Cable Management Bar, Metal Body, 5.5-in Deep
