OVERVIEW

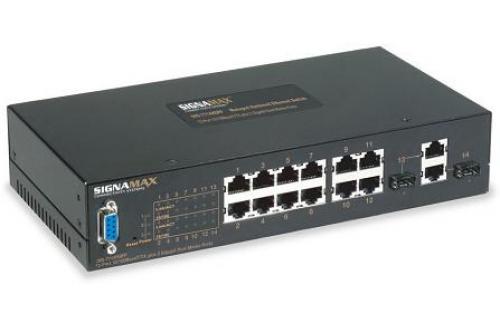

Signamax Connectivity Systems' 065-7714HSFPTB Hardened Managed Switch is designed to operate in rugged environments with extreme temperature conditions. It is equipped with twelve 10/100BaseT/TX RJ45 ports and two Dual Media 10/100/1000BaseT/TX ports in a compact package that offers a variety of mounting options.
The 065-7714HSFPTB Hardened Managed Switch functions at temperatures ranging from -40° F to 167° F (-40° C to 75° C), meeting NEMA TS1 and TS/2 specifications for Traffic Control Equipment, and is tested for functional operation at even greater extremes: -40° F to 185° F (-40° C to 85° C). The 065-7714HSFPTB is a fully managed switch, with system administrator control via SNMP, Web Browser, Telnet or a Local Console port mounted on the front panel for easy access. This vehicle supports advanced features such as 802.1Q VLAN, MAC-based Trunking, IP-Multicast IGMP Snooping, Rapid Spanning Tree for Redundancy, QoS for priority queuing, and port mirroring for easy implementation of resilient, high-capacity networks supporting critical Traffic Control and Public Safety applications over Gigabit Ethernet copper and fiber backbones.
Individual administrators or Network Operations Centers (NOCs) may also choose to perform remote monitoring and configuration using the Web browser or Telnet interfaces, or from overlay management systems such as HP OpenViewTM or IBM/Tivoli NetViewTM via SNMP and RMON. The 065-7714HSFPTB also supports rate control for individual port maximum bandwidth settings, for high-granularity network control. The Signamax 065-7714HSFPTB Hardened Managed Switch offers powerful control and administrative features in a rugged, compact, and cost-effective package.
SPECIFICATIONS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.1p Priority (Quality of Service [QoS])
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1Q Tagged VLAN
IEEE 802.3x Flow Control
IEEE 802.1x Access Control
12 - RJ-45 10/100BaseT/TX ports
2 - Dual Media Gigabit Ethernet ports (2- RJ-45 10/100/1000BaseT/TX ports with corresponding Small Form-factor Pluggable [SFP] auto-detecting ports)
Broadcast/Multicast Storm Suppression enabled.
Optional Interfaces:
065-79SXMG-H:
1000BaseSX Hardened SFP fiber optic module with LC multimode fiber connectors, -40° C to 85° C operation.
Maximum distance: 220 meters with 62.5/125 micron fiber or 550 meters with 50/125 micron fiber.
065-79LXMG-H:
1000BaseLX Hardened SFP fiber optic module with LC multimode fiber connectors, -40° C to 85° C operation.
Maximum distance: 10 km with 9/125 micron fiber.
Optional Hardened SFP Gigabit Ethernet Modules Sold Separately.
Other SFP Modules are also available. Please visit www.signamax.com for additional details.
Per Switch: Power Status 1, 2, & 3
Per Port: Link/Activity, 10/100 or 10/100/1000 speed
Latency: <4.5 μs (LIFO).
Throughput: 1.48810 million pps (64-byte packets)
Switch Fabric Speed: 8.0 Gbps (non-blocking, wire speed performance)
MAC Address Capacity: 8 K MAC addresses
Per-port programmable MAC address locking
Up to 24 Static Secure MAC addresses per port
Frame Buffer: 2 MB
Port Mirroring: Inbound and Outbound, assignable to any port.
IEEE 802.1x access control.
- INTERNETWORKING PROTOCOLS SUPPORTED
MAC-based Trunking: 2 Fast Ethernet +1 Gigabit Ethernet trunking groups; up to 4 ports for each group
GVRP/GARP (GARP VLAN Registration Protocol / Generic Attribute Registration Protocol): IEEE 802.1Q with GVRP/ GARP
Multicasting: Supports IP Multicast Filtering via IGMP Snooping V1, V2 & V3
STP/RSTP/MSTP (Spanning Tree Protocol / Rapid Spanning Tree / Multiple Spanning Tree Protocol): IEEE 802.1d/1w/1s
Port-based VLAN
IEEE 802.1Q Tag-based VLAN; up to 4K active VLANs possible
Supports 802.1p QoS with four level priority queue
Supports two scheduling types, Strict Priority and Weighted Round Robin (WRR) with user-variable weighting.
Supports bandwidth rating per port.
- BANDWIDTH CONTROL CAPABILITIES
Bandwidth Rate Limiting:
Ingress rate limits:
Ports 1-12: 64 Kbps up to 100 Mbps
Ports 13 & 14: 64 Kbps up to 1000 Mbps
Egress rate limits:
Ports 1-12: 64 Kbps up to 100 Mbps
Ports 13 & 14: 64 Kbps up to 1000 Mbps
Broadcast Storm Suppression: Multicast/Broadcast/Unknown-Unicast Storm suppression
Access Methods: Console port access via RS-232C DB-9 local console serial port, Telnet remote access, SNMP agent, and Web browser.
Software Upgrade Capability: Via TFTP
SNMP v1, v2, and v3 Network Management:
RFC 1213 MIB (MIB-2)
RFC 1757 RMON MIB
Statistics Group 1
History Group 2
Alarm Group 3
Event Group 9
RFC 1493 Bridge MIB
VLAN MIB (IEEE802.1Q/RFC2674)
Private MIB
Safety: UL508, EN60950-1, IEC60950-1; CE Mark
EMI: FCC Part 15 Class A; EN61000-6-3; EN55022; EN61000-3-2; EN61000-3-3
EMS:
ESD Standards (IEC 61000-4-2):
Enclosure Contact: + / - 4KV; Criteria B;
Enclosure Air: + / - 8KV; Criteria B
Radiated FRI Standards (IEC 61000-4-3):
Enclosure Ports: 10V/m, 80 to 1000 MHz, 80% AM; Criteria A
Burst Standards (IEC 61000-4-4):
Enclosure Ports: + / - 4KV @ 2.5 KHz; Criteria B
D.C. Power Ports: + / - 4KV; Criteria B
A.C. Power Ports: + / - 4KV; Criteria B
Surge Standards (IEC 61000-4-5):
Signal Ports: + / - 1KV; Line-to-line; Criteria B
D.C. Power Ports: + / - 0.5KV; Line-to-earth; Criteria B
A.C. Power Ports: + / - 2KV; Line-to-earth; Criteria B
Induced RFI Standards (IEC 61000-4-6):
Signal Ports: 10V RMS @ 0.15-80 MHz, 80% AM; Criteria A
D.C. Power Ports: 10V RMS @ 0.15-80 MHz, 80% AM; Criteria A
A.C. Power Ports: 10V RMS @ 0.15-80 MHz, 80% AM; Criteria A
Earth Ground Ports: 10V RMS @ 0.15 - 80 MHz, 80% AM; Criteria A
Magnetic Field Standards (IEC 61000-4-8):
30A/m @ 50, 60 Hz; Criteria A
Voltage Dip Standards (IEC 61000-4-11):
A.C. Power Ports: 30% Reduction for 0.5 period; Criteria B
Environmental Test Compliance:
Vibration Resistance (IEC 60068-2-6fc):
5G @ 150 Hz (Operation/Storage/Transport); Criterion 3
Shock (IEC 60068-2-27):
25G @ 11ms (Half-Sine Shock Pulse; Operation);
50G @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
Free Fall (IEC 60068-2-32 Ed): 1 Meter (3.281 ft.)
NEMA TS1/2 Environmental Requirements for Traffic Control Equipment
- PHYSICAL CHARACTERISTICS:
Dimensions: 9.25"W x 4.92"D x 1.97"H (235 mm x 125 mm x 50 mm)
Housing: IP30 protection, metal case
Weight: 3.3 lbs (1.5 kg)

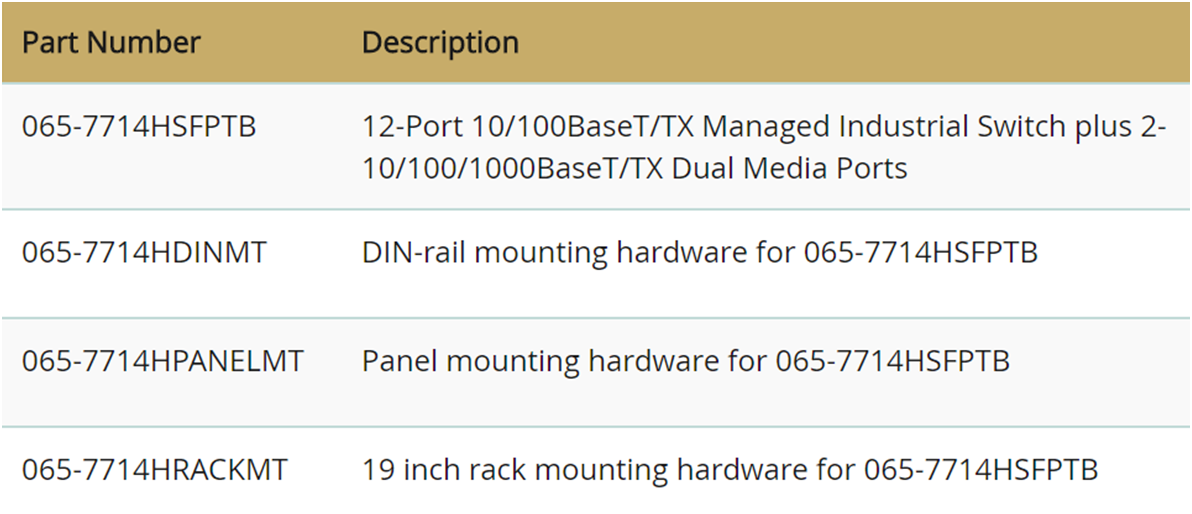

Optional DIN-rail, panel, and/or 19-in rack mounting hardware sold separately.
- ELECTRICAL CHARACTERISTICS
Maximum Power Consumption: 15 Watts
Maximum Current Drawn: 1.25 A @ 12 VDC; 0.625 A @ 24 V DC
DC Input Range: 12 to 32 V DC, connected via redundant terminal block.
- ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: -40°F to 167°F (-40°C to 75°C)
Storage Temperature: -50°F to 200°F (-45°C to 93°C)
Operating Humidity: 10 to 95% (non-condensing)
5 years
****Download Firmare Upgrade: http://www.signamax.com/industrial-ethernet/49-12-port-10100-industrial-managed-switch-2-sfprj-45-dual-media-ports
