OVERVIEW

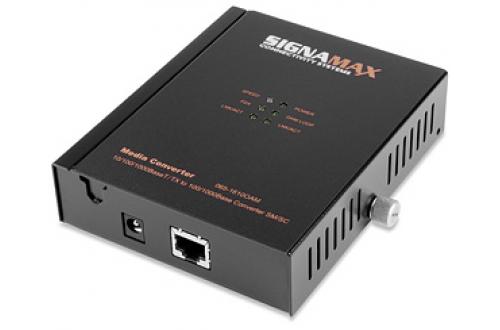

Signamax Connectivity Systems' 065-16xxOAM series Managed Operations, Administration & Maintenance (OAM) Media Converters are designed to provide Local Exchange Carriers (LECs), Internet Service Providers (ISPs), and large installations such as airports with media conversion solutions that can provide device information, testing, and integration with standards-based operations systems in a Fiber to the Premises (FTTP) environment. These converters adhere to the IEEE 802.3ah standard for Link Monitoring, Remote Failure Indication, and Remote Loopback capabilities.
The Signamax OAM media converter series are equipped with a 10/100/1000BaseT/TX RJ45 port and a fiber interface that supports either 1000Base or 100Base connections. Multimode and singlemode models share the same OAM feature set, so that commercial entities who utilize multimode fiber for their Local Area Networks (LANs) can get the same advantages of remote fault detection and testing and controlling unnecessary dispatches as carriers using singlemode fiber for their Wide-Area Networks (WANs).
SPECIFICATIONS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX/FX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3ah OAM (Operations, Administration, & Maintenance)
1 - RJ-45 10/100/1000BaseT/TX ports
1 - Dual Rate 100BaseFX/BX or 1000BaseSX/LX/BX port;

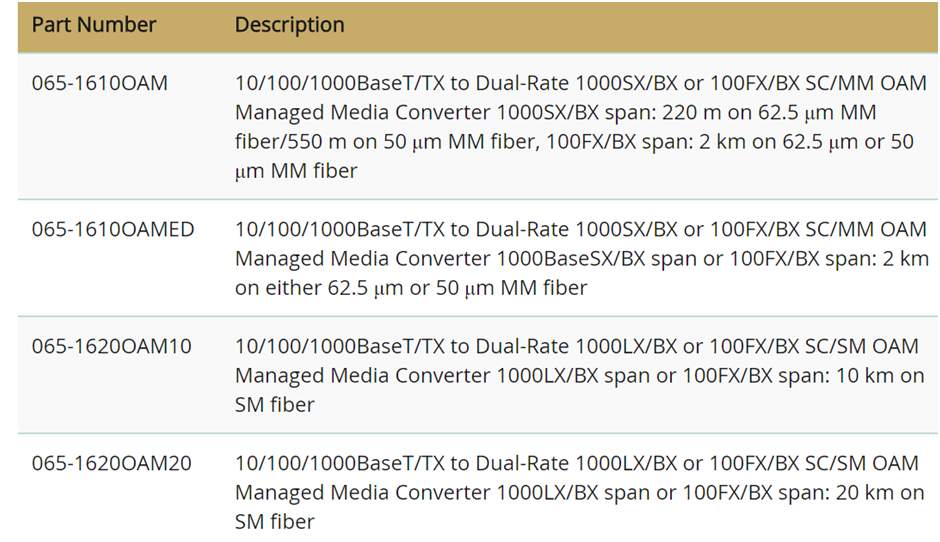

Model 065-1610OAM:
SC multimode connector;
1000BaseSX/BX span: 220m on 62.5I multimode fiber/550 m on 50I multimode fiber 100BaseFX/BX
span: 2 km on either 62.5I multimode fiber or 50I multimode fiber
Model 065-1610OAMED:
SC multimode connector;
1000BaseSX/BX span or 100BaseFX/BX span: 2 km on either 62.5I or 50I multimode fiber
Model 065-1620OAM10:
SC singlemode connector;
1000BaseSX/BX span or 100BaseFX/BX span: 10 km on singlemode fiber
Model 065-1610OAM20:
SC singlemode connector;
1000BaseSX/BX span or 100BaseFX/BX span: 20 km on singlemode fiber
Per Media Converter: Power; OAMLOOP
Per Copper RJ-45 Port: Speed, FDX, LNK/ACT
Per Fiber Port: LNK/ACT
Latency: <4.2 μs (LIFO).
Throughput, per port: 14,880 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100 pps for 1000 Mbps (64-byte packets)
Switch Fabric Speed: 4.0 Gbps (non-blocking, wire speed performance)
MAC Address Capacity: 1,024 MAC addresses
Jumbo Frame Support: 9 K packets supported
IEEE 802.1Q Tag-based VLAN supported; up to 4K active VLANs possible
Supports Q-in-Q Double Tagged Frame Transparent
Access Methods: Via SNMP agent and Web browser.
Software Upgrade Capability: Via TFTP
SNMP v1 and v2 Network Management supported.
IEEE 802.3ah OAM supported.
Safety: CE Mark
EMI: FCC Part 15 Class A; CE Mark Class A; VCCI Class A
Dimensions: 3.94" (W) x 4.8" (D) x 1.28" (H) (100mm x 122mm x 32.5mm)
Housing: Metal case, with built-in fiber splice tray.
Weight: 1.1 lbs (0.5 kg)
- ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 23°F to 131°F (-5°C to 55° C).
Storage Temperature: -4°F to 158°F (-20°C to 70° C).
Operating Humidity: 5 to 95% RH, non-condensing.
- ELECTRICAL CHARACTERISTICS
Power Supply: External power adapter 12 Volts DC, 0.25 Amp
Maximum Power Consumption: 3 Watts.
Lifetime.
