OVERVIEW

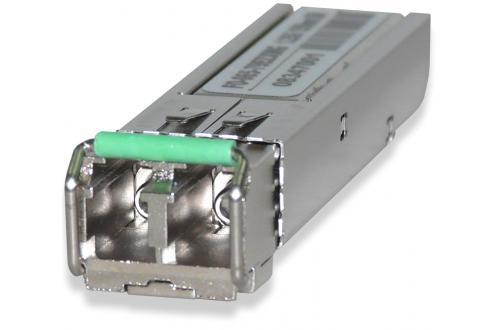

Signamax Small Form-factor Pluggable (SFP) fiber modules come in an array of options supporting Gigabit Ethernet transmission over either multimode or singlemode fiber cable at distances up to 110 kilometers. They adhere to the IEEE 802.3z standards for Gigabit Ethernet fiber connectivity, and are cost-effective methods of providing changeable Gigabit Ethernet fiber optic interfaces to switches and media converters equipped with a standard SFP port. Both standard temperature range (0° C to 70° C) and hardened temperature range (-40° C to 85° C) versions are available.

KEY FEATURES

RoHS compliant
Meets the SFP Multi-Source Agreement (MSA)
Up to 110 km link distance
Hot pluggable
Metal enclosure for low EMI performance
Low power dissipation

Application

Router / Server interface
Distributed multi-processing
Switch to switch interface
High speed I/O for file server

SPECIFICATIONS

Part Number	TX/RX Spectrum	Light Source	Link Power Budget	Typical Max. Distance	Supply Voltage	Operating Temp.
065-79EZXMG	EZX 1550 nm	DFB Laser	30 dBm	110 km **	3.3 V	0 ~ 70° C
065-79EZXMG-H	EZX 1550 nm	DFB Laser	30 dBm	110 km **	3.3 V	-40 ~ 85° C

** Maximum distances attainable on multimode Gigabit Ethernet fiber circuits are primarily dependent upon multimode distortion, also known as modal dispersion. Larger aperture fiber optic cable allows more modes to be generated at the launch point; these modes cause the pulse width to spread across a Gigabit Ethernet bit time interval to a point where accurate determination of data (i.e., ones and zeroes) is not possible. These are physical properties that are not specific to this product. These properties also apply to competing products operating in the same frequency spectrum over multimode fiber cable having the same modal bandwidth.

*** Maximum distances attainable on singlemode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path. For comparison with competing products, please use the Link Power Budget for meaningful comparisons.

DOWNLOADS

Data sheet

ORDERING INFORMATION

Standard Temperature Range (0° C to 70° C) Models

Part Number	Description
065-79EZXMG	1000BaseEZX SFP Module 1550 nm – SM/LC, 110 km

Industrial Temperature Range (-40° C to 85° C) Models

Part Number	Description
065-79EZXMG-H	1000BaseEZX SFP Module 1550 nm – SM/LC, 110 km
