KEY FEATURES
- BNC male to BNC female.
- Provide protection for analogc HD-TVI, HDCVI, AHD,CVBS camera,DVR devices.
- Comply with IEC 61000-4-5.

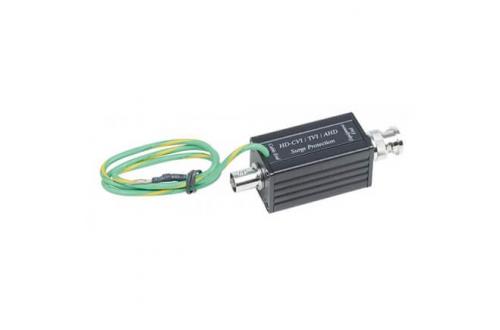

JSP-005-1 HD-TVI/AHD/HDCVI/CVBS Surge Protector
OVERVIEW
HD-TVI/AHD/HDCVI Surge Protector
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.
SPECIFICATIONS
|
Item No. |
JSP-005-1 |
|
Input and output interface |
BNC (Male) x 1 、BNC (Female) x 1 |
|
Surge Protection Attack Time |
< 1nS |
|
Starting voltage surge |
7V |
|
Minimum Breakdown Voltage |
6V |
|
Maximum Clamping Voltage |
25 V |
|
Reference Standard |
IEC 61000-4-5 |
|
Signal insertion loss |
0.9db @ 50Mb/s |
|
Maximum discharge current |
2 KA ( MAX ) |
|
Environmental Specifications |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions |
79.3x25.4x25.4 (mm) |
|
Weight |
75 (g) |
DOWNLOADS
Data sheetORDERING INFORMATION
|
Part Number |
Description |
|
|
JSP-005-1 |
|
