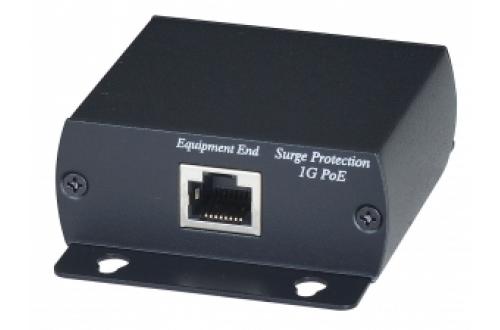

High Performance 1G POE Surge Protector
|
Item No. |
JSP-003-1-PG |
|
Input/ Output Interface |
RJ45 x 2 |
|
Pass-Through Data Rates |
10/100/1000 Mbps |
|
Response time |
< 0.7nS |
|
Lightning protection |
10 KA ( 8/20uS) / 20 KV ( 8/20uS) |
|
ESD protection |
30KV(Air, Contact) |
|
Temperature |
Operation: -10 to 70℃, Storage: -40 to 80℃, Humidity: up to 85% |
|
Material |
Aluminum, Metal |
|
Dimensions |
67 x 87 x 27 (mm) |
|
Weight |
160 (g) |
|
Part Number |
Description |
|
JSP-003-1-PG |
High Performance 1G POE Surge Protector |
