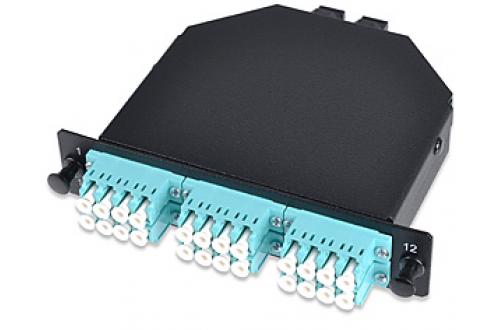

Plug-and-Play Pre-Terminated Optical Fiber Cassettes

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

Plug-and-Play Pre-Terminated Fiber Cassettes featuring one of the most advanced modern optical fiber technologies provide quick and easy handling of high-density optical fiber connections. Available in multiple configurations MTP cassettes can be used in tele-communications spaces for cross- and interconnections, for connection of active equipment to the cabling. Simple mounting mecha-nism similar to one used in optical fiber adapter plates allows using MTP cassettes almost in every kind of optical fiber enclosure and panel accepting such plates. Cassette connectors pre-terminated at the factory provide the highest possible level of transmission pa-rameters corresponding to the connector type used.

KEY FEATURES

Simple mounting mechanism
Compatibility with almost all Signamax optical fiber enclosures and panels accepting standard adapter plates
OM1, OM2, OM3, OM4 multimode and OS1 singlemode connections
MTP to SC or LC configurations
12- and 24-single-channel-connector configurations
All connectors are pre-terminated
