OVERVIEW

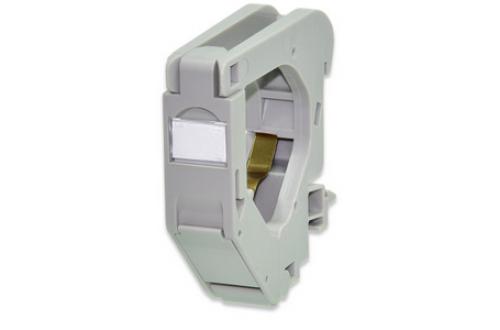

Signamax Keystone Industrial DIN-Rail Mounting Modules afford an opportunity to combine advantages of regular keystone jack de-sign and transmission performance with simplicity and usability of industrial DIN-rail mounting systems.
State-of-the-art module's design provides all kinds of features usually found in office work area solutions, - universal labeling, pro-tection covers, "front access," "gravity compensation" for patch cords along with such important for the industrial applications aspects as toolless mounting and replacement of connector modules, quick access to any part of the assembly. Additionally, modules allow installing screened jacks without any extra efforts, parts, and tools.
SPECIFICATIONS
Housing: high impact thermoplastic, UL94V-0 fire retardant
Jack spring wire: bronze alloy
DIN rail: 35 mm (1.378 in)
Keystone module width: 17 mm (0.669 in) max
KI-DIN-RMM-SL:
D 67.5 mm H 70.5 mm W 21.0 mm
D 2.66 in H 2.78 in W 0.83 in
KI-DIN-RMM:
D 67.50 mm H 70.50 mm W 18.0 mm
D 2.66 in H 2.78 in W 0.71 in
Storage: -40 °C-+70 °C (-40 °F-+158 °F)
Operation: -10 °C-+60 °C (+14 °F-+140 °F)
RH (operation): max non-condensing 93 %
Signamax MT*series unscreened keystone jacks
Signamax TL*series screened keystone jacks
Signamax KRJ45/xS unscreened feed*thru couplers
