100BaseFX/BX SFP Fiber Module – 5 km

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

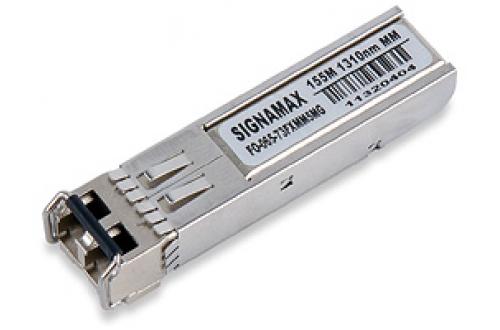

The Signamax 065-73FXMM5MG is a Small Form-factor Pluggable (SFP) multimode fiber module that supports Fast Ethernet, SONET OC-3, or SDH STM-1 over multimode fiber cable at distances up to 5 kilometers. It adheres to the IEEE 802.3u standard for Fast Ethernet over multimode fiber at 1310 nm, and is a cost-effective method of providing changeable Fast Ethernet / OC-3 / STM-1 multimode interfaces to switches and media converters designed for these applications that are equipped with a standard 100Base SFP port.

KEY FEATURES

RoHS compliant
Meets the SFP Multi-Source Agreement (MSA)
Up to 5 km link distance
Hot pluggable
Metal enclosure for low EMI performance
Low power dissipation

Application

Metro Access Rings
Point-to-Point networking
SONET OC-3 / SDH STM-1 over multimode fiber
100BaseFX Fast Ethernet over multimode fiber

SPECIFICATIONS

Part Number	Model / Spectrum	Light Source	Link Power Budget	Typical Max. Distance**	Supply Voltage	Operating Temp.
065-73FXMM5MG	1300 nm nominal	Uncooled LED	10.5 dBm	5 km	3.3 V	0 ~ 70° C
065-73FXMM5MG-H	1300 nm nominal	Uncooled LED	10.5 dBm	5 km	3.3 V	-40 ~ 85 °C

** Maximum distances attainable on multimode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path.

DOWNLOADS

Datasheet

ORDERING INFORMATION

Part Number	Description
065-73FXMM5MG	100BaseFX / OC-3 / STM-1 SFP Module – MM/LC, 5 km
065-73FXMM5MG-H	100BaseFX / OC-3 / STM-1 SFP Industrial Module – MM/LC, 5 km (-40 to 85 °C)
