100BaseFX/BX SFP Fiber Module – 2 km (Special Order)

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

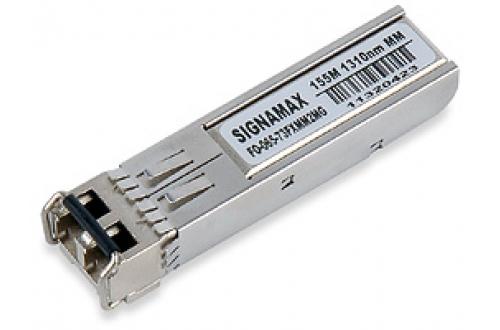

The Signamax 065-73FXMM2MG is a Small Form-factor Pluggable (SFP) multimode fiber module that supports Fast Ethernet, SONET OC-3, or SDH STM-1 over multimode fiber cable at distances up to 2 kilometers. It adheres to the IEEE 802.3u standard for Fast Ethernet over multimode fiber at 1310 nm, and is a cost-effective method of providing changeable Fast Ethernet / OC-3 / STM-1 multimode interfaces to switches and media converters designed for these applications that are equipped with a standard 100Base SFP slot.

KEY FEATURES

Compliant with SFP MultiSource Agreement. Compliant with IEEE802.3u.
RoHS Compliant.
Duplex LC connector.
1300 nm uncooled LED.
3.3V power supply.
Hot-Pluggable capability.
Extended EMI & ESD protection.
Suitable for Fast Ethernet (100BaseFX), SONET OC-3, and SDH STM-1 applications.

Application

Metro Access Rings
Point-to-Point networking
SONET OC-3 / SDH STM-1 over multimode fiber
100BaseFX Fast Ethernet over multimode fiber

SPECIFICATIONS

Part Number	Model / Spectrum	Light Source	Link Power Budget	Typical Max. Distance**	Supply Voltage	Operating Temp.
065-73FXMM2MG	1310 nm nominal	Uncooled LED	10.5 dBm	2 km	3.3 V	0 ~ 70° C

** Maximum distances attainable on multimode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path.

DOWNLOADS

Datasheet

ORDERING INFORMATION

Part Number	Description
065-73FXMM2MG	100BaseFX / OC-3 / STM-1 SFP Module – MM/LC, 2 km
